Creating Azure Function for Azure Speech Services Speech Text which Inputs Any Audio Format

Azure Speech Services provides a convenient interface for Speech to Text or Text to Speech capabilities. It’s part of Azure AI Services stack and provide out of the box capabilities with Speech such as real time speech to text, speech translation, intent recognition and many more capabilities.

If you haven’t try it yet, probably this post would give some insight on how to start and use it in many different scenarios. It has a free tier with 5 audio hours free per month more than enough for a small project.

Azure Speech services provide a SDK in several different languages and Speech to text REST API which is ready to use.

I was intended to use the Speech to text REST API in one of my side projects where I need to upload a audio clip from PowerApps microphone controller and get the text. I instantly got stuck with this since the format of the recorded audio in PowerApps Microphone controller are not compatible with what is permitted by the REST API.

PowerApps Microphone controller saves audio in following formats in different devices.

3gp format for Android.
AAC format for iOS.
OGG format for web browsers.

Speech to text REST API supports only WAV or OGG, so basically it will not work on Android or iOS recorder audio.

This is the background story in short for this post. Hope this will be useful for anyone who’s curious about Azure Speech service and who has really suffering from the problem of audio formats.

Solution Overview

My plan to overcome this hurdle was to create a Azure function which will accept the audio file as the payload, convert to WAV using FFmpeg, send the converted audio to Azure Speech to Text SDK and return the response back to the app.

For those who don’t know FFmpeg, it’s an open source library which can convert between audio and video files. I was using FFmpeg over a decade ago to convert audio/video to MP3 (good old times when we had our own local Spotify) and never thought it will come in handy for this purpose.

There are few things I learned by doing this such as how to run an executable inside an Azure Function and working with Speech To Text SDK. I’ll be covering each step in the blog post and hope this would help anyone who visit this post searching for the similar issue or anyone who would like to try out the Azure Speech To Text.

Prerequisites

Azure Subscription.
Postman
Visual Studio 2022 or higher, including the Azure development workload.

Setting-up and Testing Azure Speech Service

Creating the Speech Resource in Azure

Give your Speech service a name, select region, Pricing tier and the resource group. Keep in mind that you can create one Free Speech Service per subscription, so you can utilize this without any cost!

Remember to choose the Region nearest to you in order to get the lowest latency in your service.

Once the resource is successfully created, go to the Speech Service and copy the KEY 1 and the Region

Testing Speech To Text REST API with Postman

Before we’ll dig into the interesting part, we’ll check if everything works out fine using Postman.

Create a new Request in Postman with HTTP verb POST

URL: https://{AZURE_REGION_OF_SPEECH_SERVICE}.stt.speech.microsoft.com/speech/recognition/conversation/cognitiveservices/v1?language=en-US

I’m using English as the language but there are many other languages supported by Azure Speech Service. Check the supported languages list for updated languages list.

Go to the Headers tab and add a new Header

Key: Ocp-Apim-Subscription-Key

Value: KEY 1 from the Speech Service

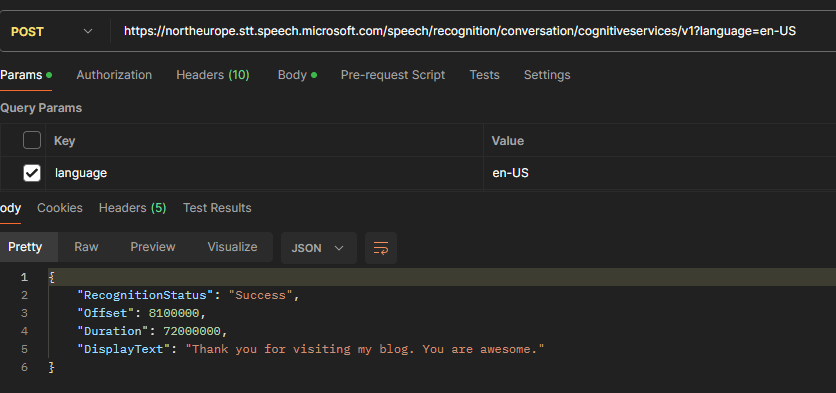

Go to the Body tab and insert a audio file (this needs to be in .wav/ .ogg format) which has contains speech as a Binary.

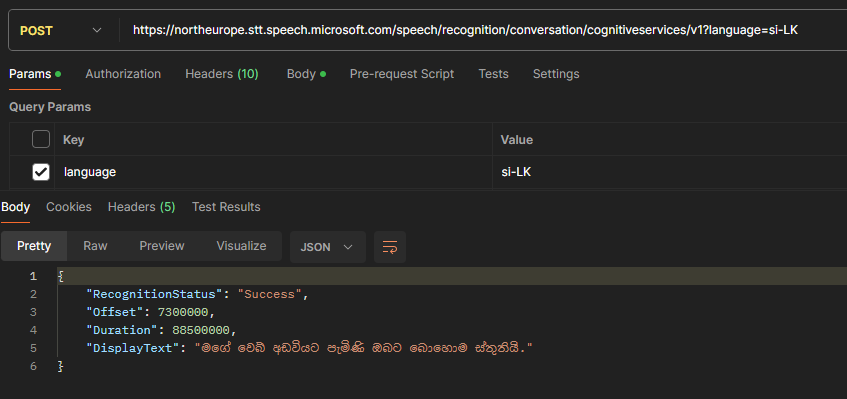

I’ve tested it with my native language Sinhala (Sri Lanka), and seems the response is accurate!

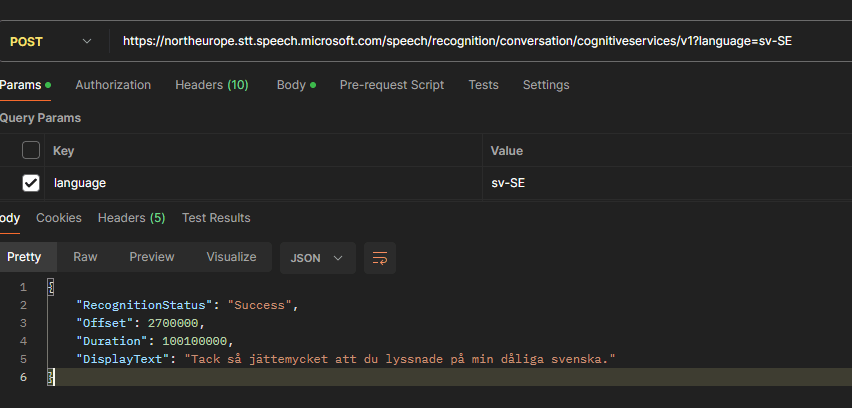

And some Swedish. Even with my pretty bad accent, it understood what I said! 😎

Azure function

I’m not going into more details on how to create the azure function here. Some key components required are

Function worker: Net 8.0 Isolated
NuGet packages: Microsoft.CognitiveServices.Speech, Newtonsoft.Json

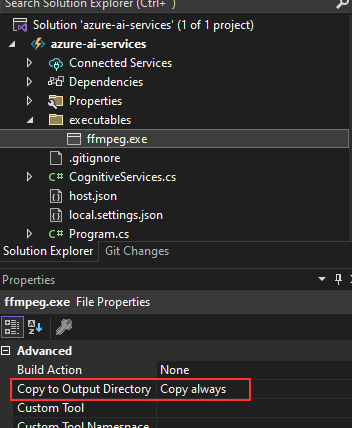

Make sure you add the ffmpeg.exe to your project and set the property Copy to Output Directory = Copy always

Check below video on how to execute an exe in a Azure function

Here’s my azure function

	using Azure.Core;
	using Microsoft.AspNetCore.Http;
	using Microsoft.AspNetCore.Mvc;
	using Microsoft.Azure.Functions.Worker;
	using Microsoft.CognitiveServices.Speech;
	using Microsoft.CognitiveServices.Speech.Audio;
	using Microsoft.Extensions.Logging;
	using Newtonsoft.Json.Linq;
	using System.Diagnostics;


	namespace azure_ai_services
	{
	public class CognitiveServices
	{
	static string speechKey = "YOUR_SPEECH_KEY";
	static string speechRegion = "your_speech_region";

	private readonly ILogger<CognitiveServices> _logger;

	public CognitiveServices(ILogger<CognitiveServices> logger)
	{
	_logger = logger;
	}

	//————————————————————————–
	//—— Speech to text —————————————————-
	//————————————————————————–
	[Function("Stt")]
	public async Task<IActionResult> Run([HttpTrigger(AuthorizationLevel.Anonymous, "post")] HttpRequest req)
	{
	_logger.LogInformation("C# HTTP trigger function processed a request.");


	var tempPath = Path.GetTempPath();
	var tempIn = Path.GetRandomFileName() + ".tmp"; // For FFMPeg input file name can be anything
	tempIn = Path.Combine(tempPath, tempIn);

	var tempOut = Path.GetRandomFileName() + ".wav";
	tempOut = Path.Combine(tempPath, tempOut);

	using (var ms = new MemoryStream())
	{
	_logger.LogInformation($"File write start: {tempIn}");
	await req.Body.CopyToAsync(ms);
	File.WriteAllBytes(tempIn, ms.ToArray());

	ms.Dispose();
	_logger.LogInformation($"File write finished: {tempIn}");
	}

	Process process = new Process();
	//Azure path COMMENT FOR LOCAL TESTING
	process.StartInfo.FileName = @"C:\home\site\wwwroot\executables\ffmpeg.exe";
	//Local path
	//process.StartInfo.FileName = @"D:\_work\dsj23\repos\azure-ai-services\azure-ai-services\executables\ffmpeg.exe";

	process.StartInfo.Arguments = $"-i \"{tempIn}\" \"{tempOut}\"";

	process.StartInfo.RedirectStandardOutput = true;
	process.StartInfo.RedirectStandardError = true;
	process.StartInfo.UseShellExecute = false;

	_logger.LogInformation($"Args: {process.StartInfo.Arguments}");

	process.Start();

	process.WaitForExit();
	var error_ = await process.StandardError.ReadToEndAsync();
	// _logger.LogInformation($"FFMPEG Info: {error_}");

	process.Dispose();

	_logger.LogInformation($"File conversion finished: {tempOut}");


	//Now comes the interesting part. SPEECH TO TEXT
	var speechConfig = SpeechConfig.FromSubscription(speechKey, speechRegion);
	speechConfig.SpeechRecognitionLanguage = "en-US";
	var audioConfig = AudioConfig.FromWavFileInput(tempOut);
	using var speechRecognizer = new SpeechRecognizer(speechConfig, audioConfig);
	var speechRecognitionResult = await speechRecognizer.RecognizeOnceAsync();

	audioConfig.Dispose();
	speechRecognizer.Dispose();

	_logger.LogInformation($"STT Result: {speechRecognitionResult.Text}");

	// Delete the temp files

	File.Delete(tempOut);
	File.Delete(tempIn);

	// Create response payload

	JObject response = new JObject
	{
	{ "DisplayText", speechRecognitionResult.Text },
	{ "Duration", speechRecognitionResult.Duration},
	};

	// Send the response
	// TODO: this will send the response in Text format. need to set the content type
	OkObjectResult okResponse_ = new OkObjectResult(response.ToString());
	return okResponse_;
	}
	}
	}
