I have tried several different integration tools like Mulesoft, Azure Service Bus and and some native coding with IFS but nothing worked as good (and free) as WSO2 Enterprise Integrator so far. It’s a complete Integration tool kit with tons of features so you can basically integrate IFS with anything with right combination of configuration and most possibly ZERO lines of coding!

There are many integration possibilities for IFS with the combination of WSO2 and currently I’m working on integrating a Chatbot to interact with IFS and some IOT stuff and will be posting more on these later.

Most of the modern day applications expose a JSON API so I thought it would be good idea to start with a JSON API so same concept can be used for other examples.

In this example…

In this example, we create RESTful API which has 3 query parameters (Company, Site,Order No) and return corresponding record from IFS customer order using a select statement

REST API design in WSO2 Integration Studio

Input request:

http://wso2_base_url:8280/ifsroot/getOrder?company=10&contract=1&order_no=BP10111

Output:

 {
    "company": 10,
    "contract": 1,
    "order_no": "BP10111",
    "order_code": "O",
    "customer_no": "BP10",
    "date_entered": "Wed Apr 18 20:55:24 CEST 2001",
    "wanted_date": "Fri Apr 20 00:00:00 CEST 2001",
    "state": "Invoiced/Closed"
}

First Steps…

Step 1 – Create ESB Solution project

  • Open WSO2 Integration Studio
  • File, New, ESB Solution Project
  • Make sure all three project types are checked

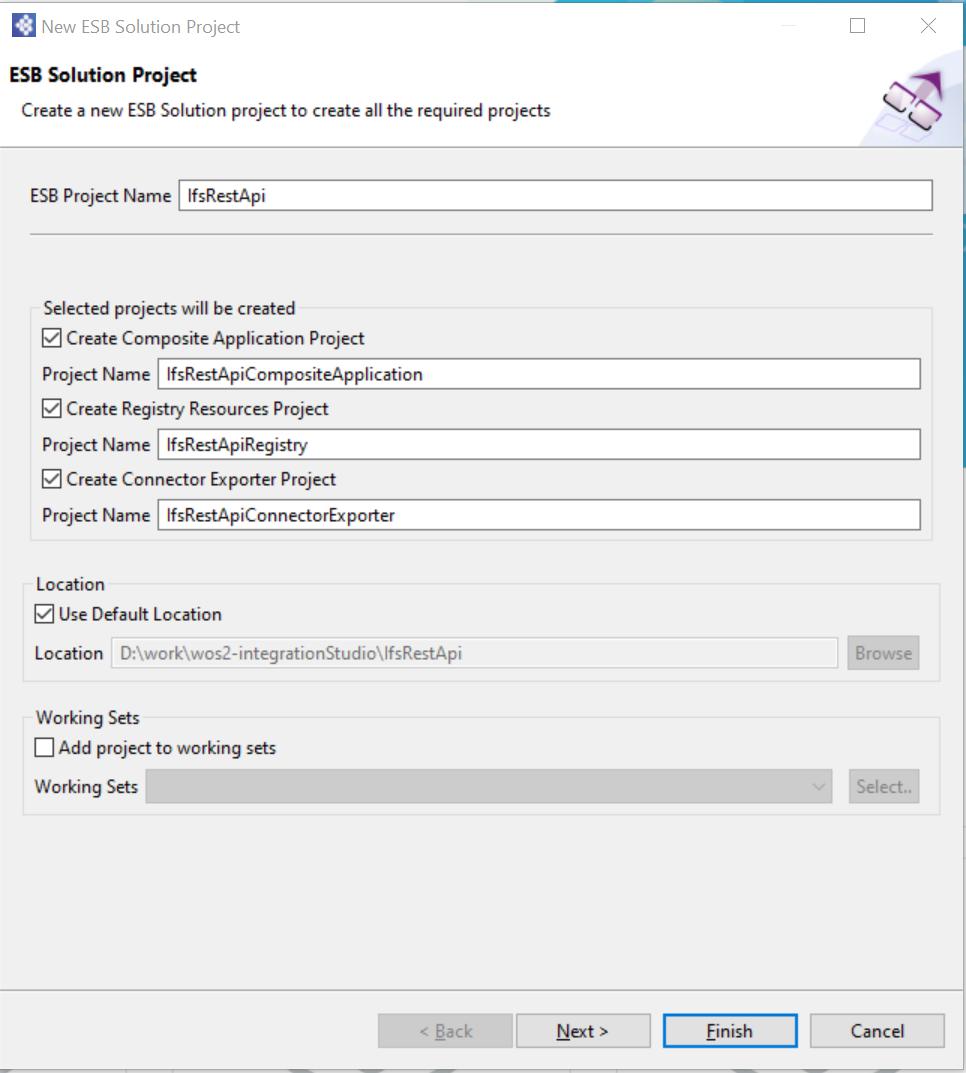

ESB Solution Project configurations

Step 2 – Add IFS connector to the project

  • Download knak.it connector .zip from the latest release – https://github.com/knakit/wso2-esb-connector-ifs/releases
  • RMB on ESB project > Add or Remove Connector > Add Connector > Add from File System.
  • Locate downloaded .zip file and add
  • RMB on Connector Exporter Project, New, Add or remove connector
  • Add the knak.it connector

Step 3 – Create REST API project

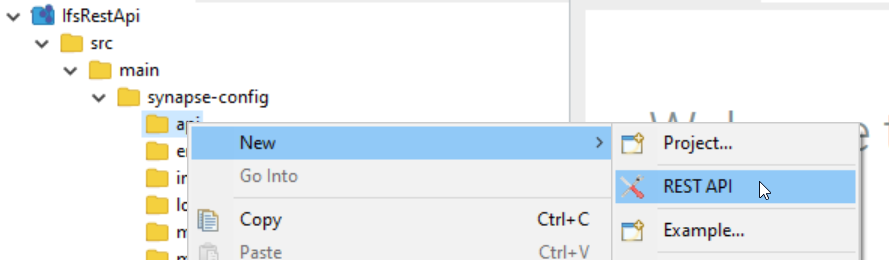

Create a new REST API by RMB on ESB solution project node or src/main/synapse-config/api

New REST API

Make sure to give meaningful Context name. This will be the root of the REST API URL

Eg: http://[wso2_base_url]:8280/root/...

Step 4 – Create new API Resource

Drag and drop APIResource item from the pallet to the API design worksheet

  • URL Style: URI_TEMPLATE
  • URI Template: /getOrder
Eg:  http://[wso2_base_url]:8280/root/getOrder/...
  • Protocols: http, https
  • Methods : Get (in this example we fetch a result of SQL query so GET is sufficient)
API resouce

Step 5 – Add Properties to read query parameters

Our API accepts Company, Site and Order No as inline query parameters. we need to define Properties to read these parameters.

Drag and drop 3 property items from pallet and define as below

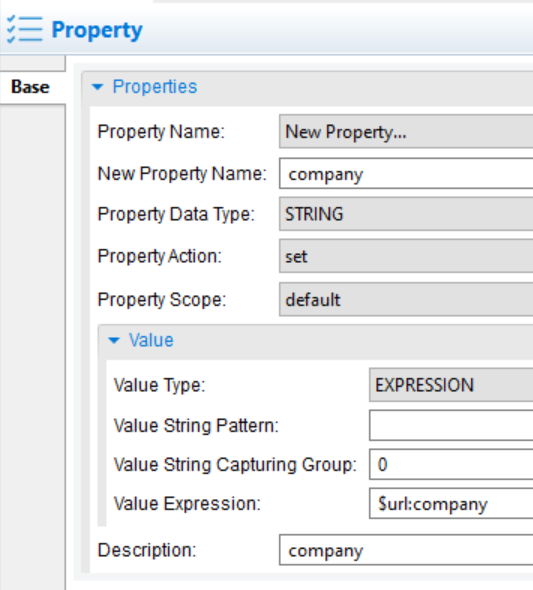

Property Item
  • Value type: Expression
  • Value Expression: company – $url:company site- $url:contract order no $url:order_no

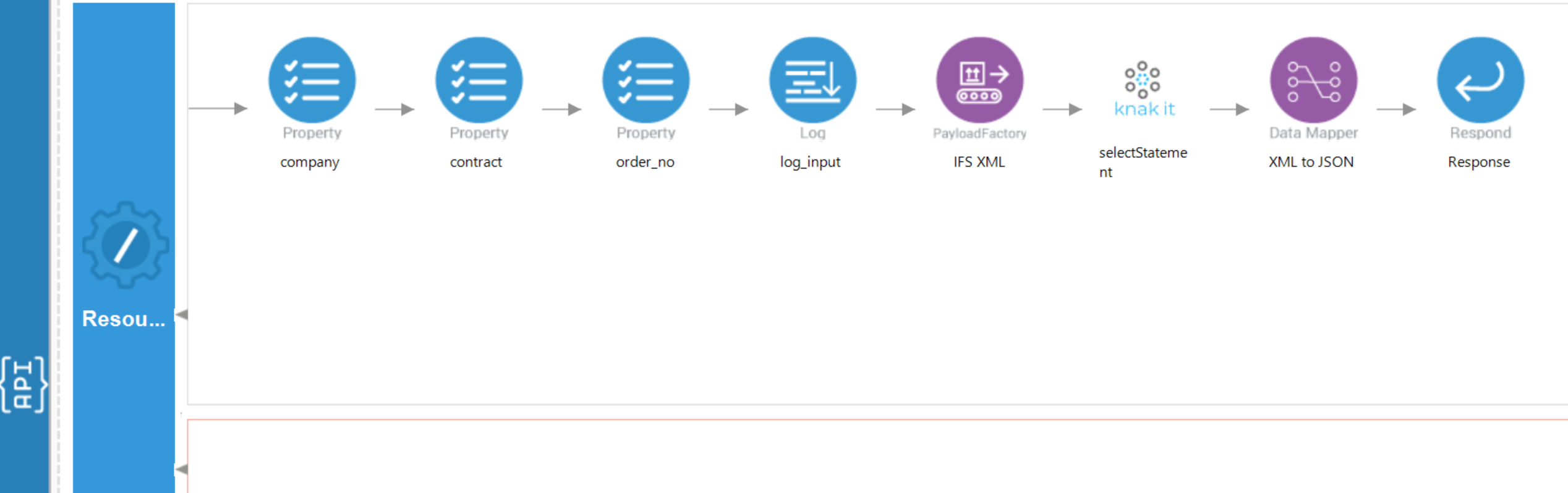

design view looks like below after adding the parameters

Step 6 – Log property values (optional)

Add a log property to log the input values. This is an optional step.

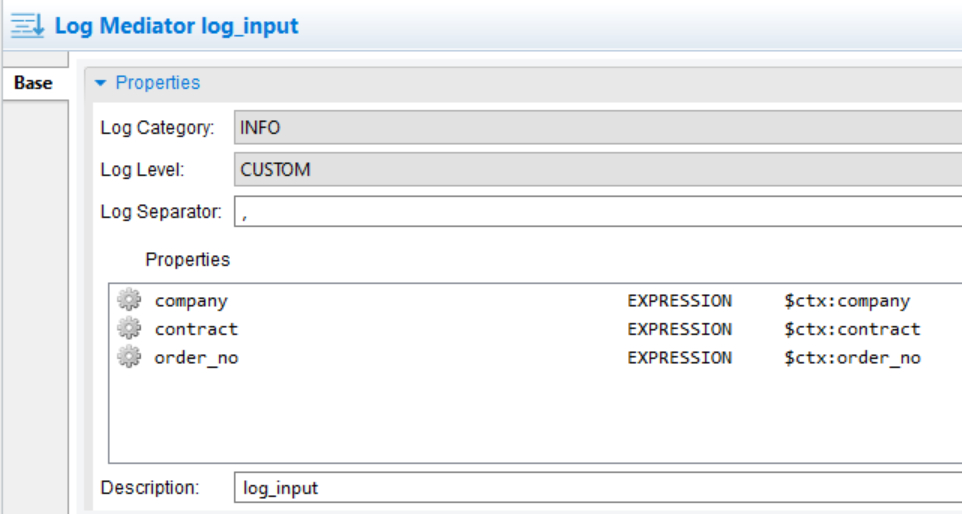

Log mediator input values

Step 7 – Create IFS XML

Now we need to call IFS and retrieve the record with knak.it connector. For this we use SQL statement operation in knak.it connector.

XML format for SQL statement can be found in knak.it connector documentation

https://github.com/knakit/wso2-esb-connector-ifs/blob/master/doc/config.md#execute-sql-statement-and-retrieve-records-from-ifs

Drag and drop PayloadFactory mediator item from pallet and configure as below

Payload Factory Configuration

Payload XML

<request>
	<bindVariables>
		<company>$1</company>
		<contract>$2</contract>
		<order_no>$3</order_no>
	</bindVariables>
	<sqlStatement>
select company, contract, order_no, order_code, customer_no, date_entered, wanted_delivery_date, state
   from ifsapp.customer_order
   where company = :company
   and contract = :contract
   and order_no = :order_no
	</sqlStatement>
</request>

Here we execute following SQL in IFS to get the Customer Order record.

select company, contract, order_no, order_code, customer_no, date_entered, wanted_delivery_date, state
   from ifsapp.customer_order
   where company = :company
   and contract = :contract
   and order_no = :order_no

Add 3 arguments of type Expression for each input parameter

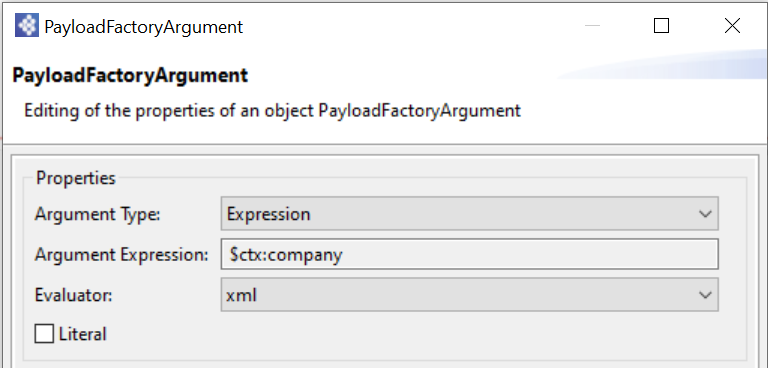

Payload Factory Argument Configuration

Step 8 – Connect to IFS using knak.it connector

Next step is to execute the select statement in IFS and get the result. For this we use knak.it operation Select Statement. Drag and drop SelectStatement operation from pallet and configure as below.

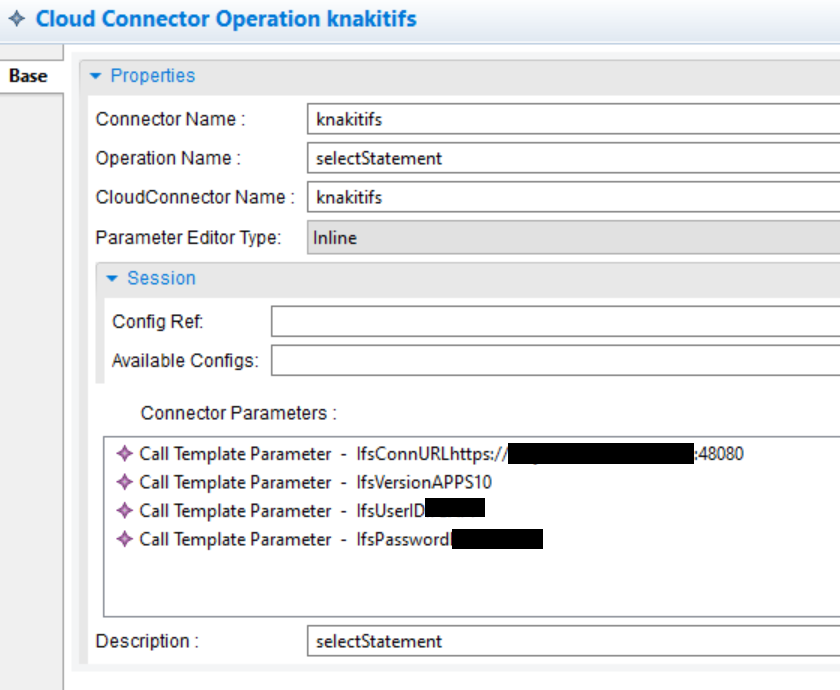

knak.it Select Statement configurations

Step 9 – Convert IFS response to JSON

SQL Result from knak.it connector is in XML format. WSO2 facilitates comprehensive data mapping tool which can be used to convert the IFS response into our preferable JSON format

knak.it Select Statement response

<ifs:resultSet xmlns:ifs="http://wso2.org/knak/ifs/connector">
    <ifs:record>
        <ifs:COMPANY ifs:Type="Text">10</ifs:COMPANY>
        <ifs:CONTRACT ifs:Type="Text">1</ifs:CONTRACT>
        <ifs:ORDER_NO ifs:Type="Text">BP10111</ifs:ORDER_NO>
        <ifs:ORDER_CODE ifs:Type="Text">O</ifs:ORDER_CODE>
        <ifs:CUSTOMER_NO ifs:Type="Text">BP10</ifs:CUSTOMER_NO>
        <ifs:DATE_ENTERED ifs:Type="Timestamp">Wed Apr 18 20:55:24 CEST 2001</ifs:DATE_ENTERED>
        <ifs:WANTED_DELIVERY_DATE ifs:Type="Timestamp">Fri Apr 20 00:00:00 CEST 2001</ifs:WANTED_DELIVERY_DATE>
        <ifs:STATE ifs:Type="Text">Invoiced/Closed</ifs:STATE>
    </ifs:record>
</ifs:resultSet>

JSON output

{
	"company": "10",
	"contract": "1",
	"order_no": "BP10111",
	"order_code": "O",
	"customer_no": "BP10",
	"date_entered": "Wed Apr 18 20:55:24 CEST 2001",
	"wanted_date": "Fri Apr 20 00:00:00 CEST 2001",
	"state": "Invoiced/Closed"
}

Drag and drop Data Mapper mediator from pallet and save it in the registry resource project created in step 1. Input and output of the data mapper can be configured visually in the designer

Data Mapper – knak.it response to JSON output

Change the DataMapper property Output Type to JSON

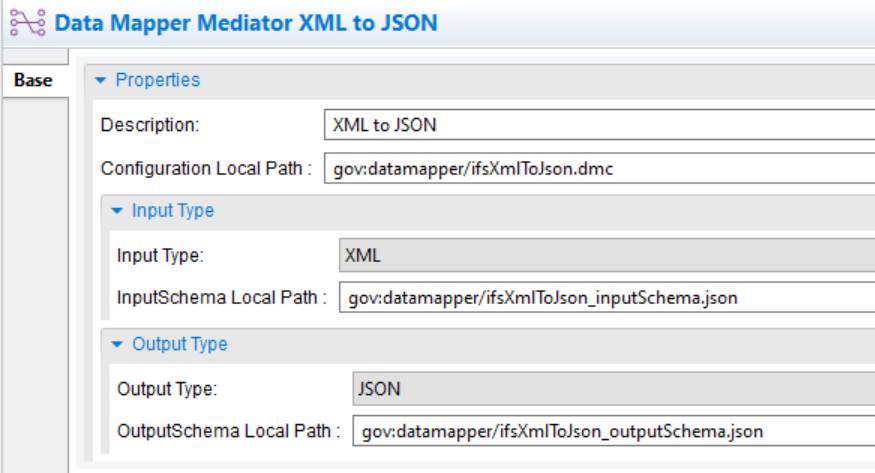

Data Mapper mediator properties

Step 10 – Return response to client

Add a Respond mediator to terminate the execution and return the response to the client

That’s basically the steps we’ll need to create the REST API. Now we are all set to test and deploy.

Test…

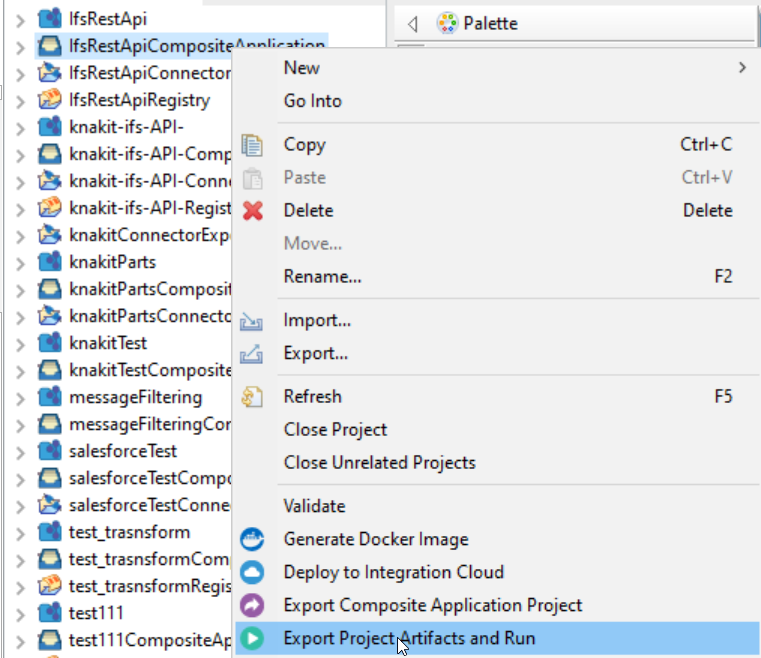

RMB on Composite Application project, Export Project Artifacts and Run.

Select all 3 projects created in Step 1

This will start the micro integrator embedded in WSO2 Integration Studio. It will start HTTP listener with port 8090. It’s time to test 🙂 I used Postman to call the REST API

Test GET request with Postman

Console output will show the input parameters and SQL statement extracted from the payload as below

Export and deploy in WSO2 ESB

Now we are all set to deploy the API in WSO2. RMB on Composite Application project, Export Composite Application Project. Choose a destination and select all 3 projects created in step 1 to be export. This will create .car file which can deploy in WSO2 as a Carbon Application
